Rugged PoE for Starlink

Choose Your Model

The Rugged PoE for Starlink is available in two configurations to meet your specific operational requirements:

101-800-A Non-CAN Model

Standard Non-CAN Model

Part Number: 101-800-A

Best For:

  • Simple, standalone installations
  • Cost-effective deployments
  • Applications not requiring remote monitoring
  • Direct power conversion without telemetry needs

Key Features:

  • Direct DC-to-DC conversion (96% efficiency)
  • MIL-STD-810 certified
  • Marine-grade construction
  • LED status indicators
  • Passive cooling design
100-001-D Smart Fuse Model

Smart Fuse Model

Part Number: 100-001-D

Best For:

  • Fleet management systems
  • Remote monitoring applications
  • Integrated vehicle/vessel systems
  • Mission-critical deployments requiring telemetry

Key Features:

  • All standard features PLUS:
  • DroneCAN/UAVCAN integration
  • Real-time telemetry (voltage, current, temp)
  • Remote power control
  • Configurable protection thresholds
  • Auto-recovery from temperature faults
  • Network status broadcasting

Common Specifications

Both models share these core specifications:

Physical

  • Weight: 2.58 lbs (1.17 kg)
  • Dimensions: 4.020" × 9.470" × 2.170"
  • Housing: Anodized 6061 Aluminum
  • Mounting: 4 × 1/4-20 stainless steel bolts
  • Cooling: Passive convection

Electrical

  • Input Voltage: 12-36 VDC
  • Max Current: 18A
  • Efficiency: 96% at 200W load
  • Starlink Compatibility: Standard & High-Performance dishes

Environmental

  • Operating Temperature: -40°C to +85°C
  • Shock & Vibration: MIL-STD-810
  • Corrosion Resistance: Marine-grade
  • Sealing: Fully sealed enclosure

Cable Assemblies

Choose Your Cable Based on Dish Type

Select the appropriate cable assembly for your specific Starlink dish model:

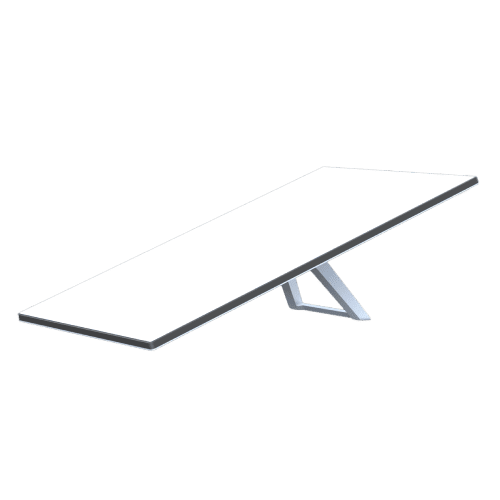

Standard Starlink Dish

Standard Starlink

Cable Part Number: 100-080-A

Wiring Notes:

The Standard Starlink dish cable follows standard T568B color nomenclature with typical gauge wire suitable for the dish's power requirements.

Field termination requires cutting and splicing the original Starlink cable to connect to the M12 industrial connector following the pinout diagram.

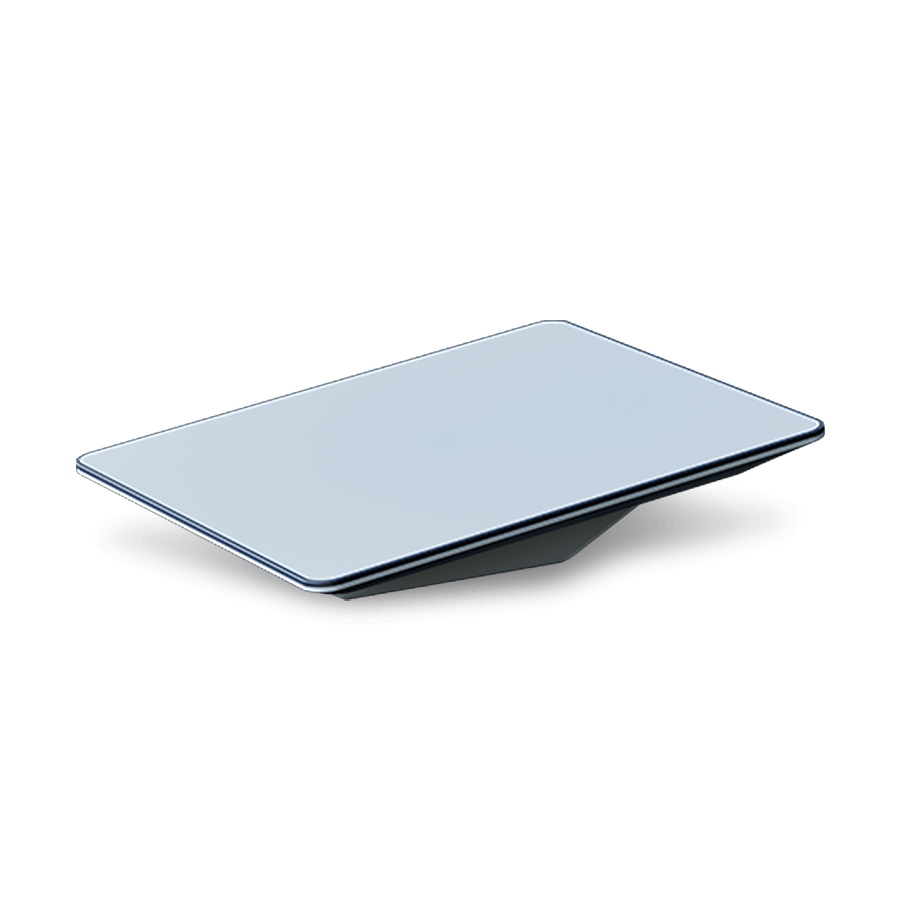

Flat High Performance Starlink

Flat High Performance Dish

Cable Part Number: 100-067-A

⚠️ Warning: Non-Standard Wiring

The Flat High Performance dish cable uses NON-STANDARD color coding that does NOT follow T568B conventions. Additionally, it uses thicker gauge wire to handle the increased power demands.

Critical: Carefully follow the pinout diagram as wire colors WILL NOT match standard Ethernet conventions. Improper termination can damage equipment.

Support & Ordering

For technical support or ordering information:

  • Email: support@tiltautonomy.com
  • Warranty: 1-year limited warranty against manufacturing defects (excludes damage from improper installation, misuse, or operation outside specifications)
