Overview

The Rugged PoE for Starlink is a military-grade power solution designed to enable Starlink connectivity in the most demanding environments. Built to MIL-STD-810 standards, this robust power converter eliminates inefficiencies in standard AC-to-DC conversion.

Installation Guide

  • To ensure waterproofing, mate all cables.
  • Improper termination of power or Starlink cables can destroy internal circuitry.
  • Do not over-torque 1/4" mounting bolts and over-compress isolation washer.
  • Up to 50 in-lbs is acceptable if no rubber isolator is used.
  • Use of self-locking fasteners recommended for mounting.
  • Apply Permatex 81343 Anti-Seize to stainless steel mounting bolts and lock nuts to prevent galling during installation and future removal.
  • Apply light amount of Loctite LB 8423 (or equivalent) dielectric grease to connector mating interfaces before connection. Wipe away excess after mating cables.

Cable Selection

Standard Starlink Dish

Standard Starlink

Cable Part Number: 100-080-A

Wiring Notes:

The Standard Starlink dish cable follows standard T568B color nomenclature with typical gauge wire suitable for the dish's power requirements.

Field termination requires cutting and splicing the original Starlink cable to connect to the M12 industrial connector following the pinout diagram.

Flat High Performance Starlink

Flat High Performance Dish

Cable Part Number: 100-067-A

⚠️ Warning: Non-Standard Wiring

The Flat High Performance dish cable uses NON-STANDARD color coding that does NOT follow T568B conventions. Additionally, it uses thicker gauge wire to handle the increased power demands.

Critical: Carefully follow the pinout diagram as wire colors WILL NOT match standard Ethernet conventions. Improper termination can damage equipment.

Power Management / Design

Input Power Requirements

The Rugged PoE accepts a wide range of DC input voltages, making it compatible with various power sources:

  • 12V Systems - Standard automotive/marine batteries
  • 24V Systems - Military vehicles, commercial trucks
  • 28V Systems - Aircraft power systems
  • 36V Systems - Industrial equipment

Critical for 12V Systems

When operating at 12V, strict adherence to IEC 61000-2-2 voltage ripple standards (≤3%) is absolutely critical. At maximum 18A draw, even small voltage drops can cause system instability. A mere 0.36V drop (3% of 12V) can trigger intermittent failures, network routing issues, and unexpected disconnections. Higher voltage systems (24V-36V) have more tolerance for voltage variations, but 12V systems require meticulous attention to wire gauge selection and connection quality to ensure reliable operation.

Electrical Connections

Critical Wiring Requirements

Proper wire gauge selection is essential for safe and reliable operation. Undersized wiring can cause excessive voltage drop, system instability, and potential fire hazards. Target voltage ripple should be ≤3% per IEC 61000-2-2 and IEEE 519 standards. For 18A at 12V, this means maintaining less than 0.36V drop across the entire wire run. Always size conductors to maintain voltage drop within acceptable limits for your specific installation length and current requirements.

Starlink Network Recovery Issue

If input power becomes insufficient (e.g., voltage drop during engine start), Starlink will stop routing TCP and UDP traffic to connected devices. This network lockup condition will persist even after power is restored and requires a full power cycle to recover. Ensure your power system can maintain adequate voltage during all operating conditions to prevent network disruptions.

Do Not Hotplug/Unplug

If the Status LED is green, the 48V DC is being injected on the Starlink M12 connector. Hot plugging the Starlink cable in after the POE is powered on can cause arcing inside the connectors as well as high inrush currents which can damage the Starlink POE and/or the Starlink Dish itself. Always power down the Starlink POE before plugging or unplugging the Starlink power cable.1

DC Input Cable Sizing Calculator

System Configuration
Dual 16 AWG (Parallel)
Installation Parameters

Compliance Status

LED Indicators

Green LED - Operating

Green
POE enabled & operating

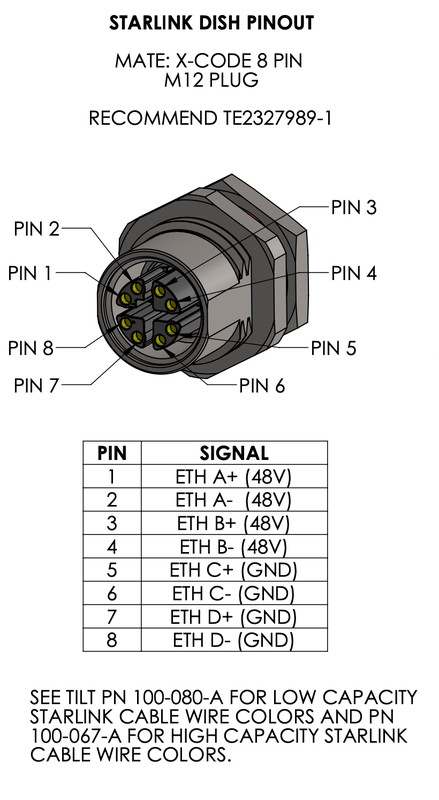

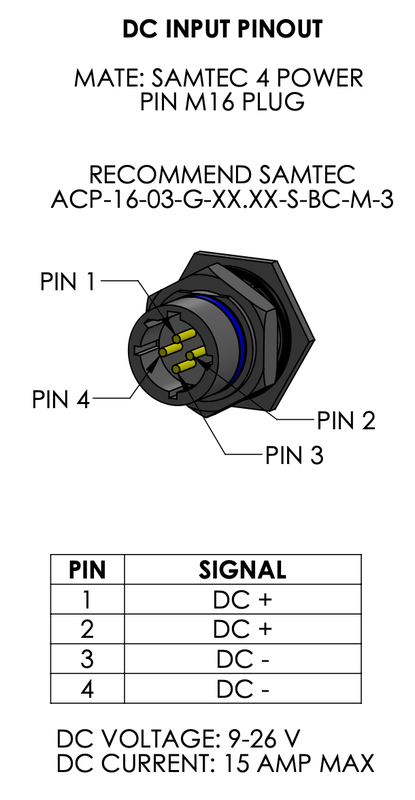

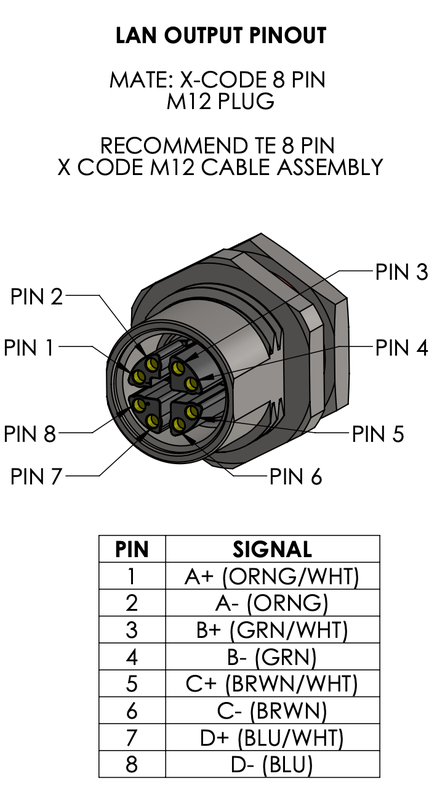

Pinout

Cable Assemblies

Compatible Cables by Dish Type

Select the appropriate cable assembly for your specific Starlink dish model:

Starlink Dish Type Required Cable Part Number Description
Standard Starlink Low Capacity 100-080-A Standard gauge conductors for normal power requirements
Flat High Performance High Capacity 100-067-A Heavy gauge conductors for increased power demands

Cable Selection

The High Performance dish requires the High Capacity cable due to its increased power consumption. Using the wrong cable type may result in system instability or failure to operate.

Troubleshooting

Common Issues and Solutions

Issue Possible Cause Solution
Starlink not detected Poor connection or power issue Check cable connections and input voltage
Network traffic not routing Power interruption occurred Check cable connections and input voltage ripple <3%
No Green Status LED Incorrect power connection Correct cable connections and input voltage
